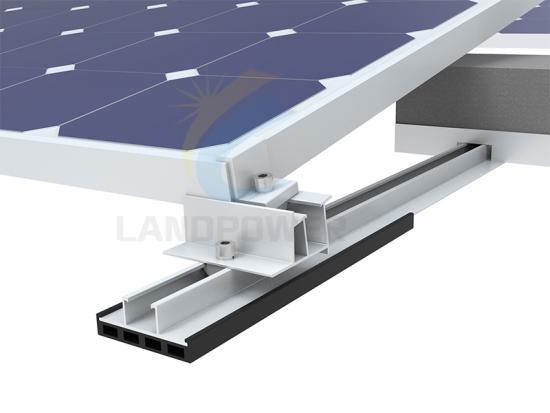

The Ballast Solar Panel Flat Roof
Mounting design for fixing on short side of solar panel, with few
components, fast installation, for both south and east west facing. They are
also can be used for bifacial solar panel with competitive prices.
Brand:
LandpowerItem No.:
LP-NFL-01Payment:
TT,L/CProduct origin:
Xiamen ChinaColor:
Silver BlackShipping port:
Xiamen ChinaLead Time:
7-15 daysThe Flat Roof Ballast Solar Mounting Structure is easy and simple mounting solutions for south facing and east and west solar panel arrangements. Only few pre-assembled mounting components like front/rear feet, mid/end clamp, EPDM mat, and ballast tray profiles. EPDM mat help separated the structure from the roof, which not only protect the roof surface, but also provides better friction and compensates for the height difference when the roof is uneven.
TECHNICAL
INFORMATION
Install Site:
Flat Roof or Metal Roof
Tilt Angle: 10
degrees
Panel Orientation:
South facing or East West
Building Height:
Up to 20m
Max Wind Speed:
<60m/s
Snow
Load:<1.4KN/m2
Standard: AS/NZS
1170, EN 1090
Material: High
Class Aluminum alloy Al 6005 T5 and Stainless Steel 304
Color: Natural
and Customized
Warranty: 12
years and 25 years lifespan

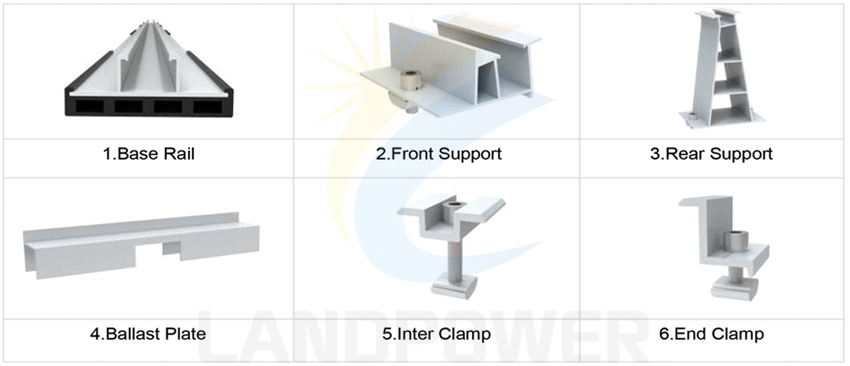

Main Components
It is fast and easy mounting system, mainly included below pre-assembled components: EPDM mat, Base Rail, front/rear legs, ballast plates, mid/end clamps.
Solar Panel Arrangement Options
The ballasted mounting systems can be in south facing and east west arrangements, they are flexible and easy to keep stock for different projects.
South Facing:
East West Arrangement:
