Aluminium Ground Mountin System-Portrait
Portrait Aluminium Ground Mounting is equipped with components which made of aluminum for mounting on concrete strip foundations or ground screw
Item No.:
LP-GM-BF01Payment:
TT,L/CProduct origin:
Xiamen ChinaColor:
Silver,BlackShipping port:
Xiamen ChinaLead Time:
7-15 days
Bifacial Solar Panel Ground Mounting Systems is easy and simple mounting solutions for Bifacial
Solar Panel, it supplies no shading on both front and back of solar modules. It
allows sunlight go directly from front of panel and also let reflect light, scattered
light and ground albedo captured by the panel. Then mounting systems ensure Bifacial
Solar Panel fully exposed to sunshine, to make sure generate more power output.
The main material is high grade aluminum and stainless steel which durable for long-term
using.
TECHNICAL INFORMATION
Install site ：Open
Field
Wind Load: Up to 60m/s
Snow load: <1.4KN/m2
Module Type: Bifacial Solar Panel
Module Arrangement: Landscape
Tilt Angle:0-65 deg. Design on request
Foundation: Ground Screw or Concrete
Main Material ：Aluminum
6005 T5
Anti-corrosive: Anodized
Standard ：En 1090,
AS/NZS 1170,DIN 1055, IBC 2006 and other international Standard
Warranty：12 years
warranty and twenty- year service life

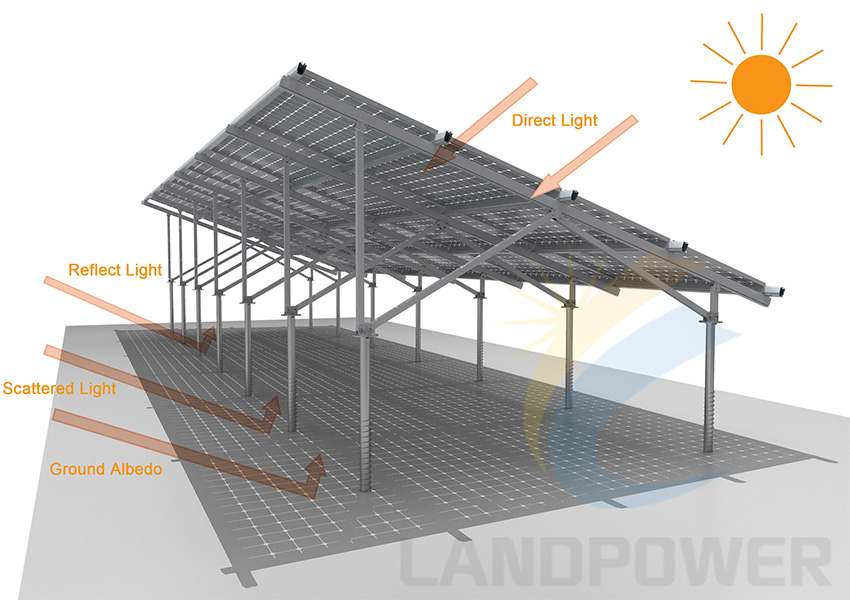

The Features of Bifacial Solar Panel Mounting
The mounting systems special design to
ensure no shading under bifacial solar panel array, the sunlight can come from
front of solar panel, and in the meantime the panel can easily get the
scattered light, reflect light and ground albedo.

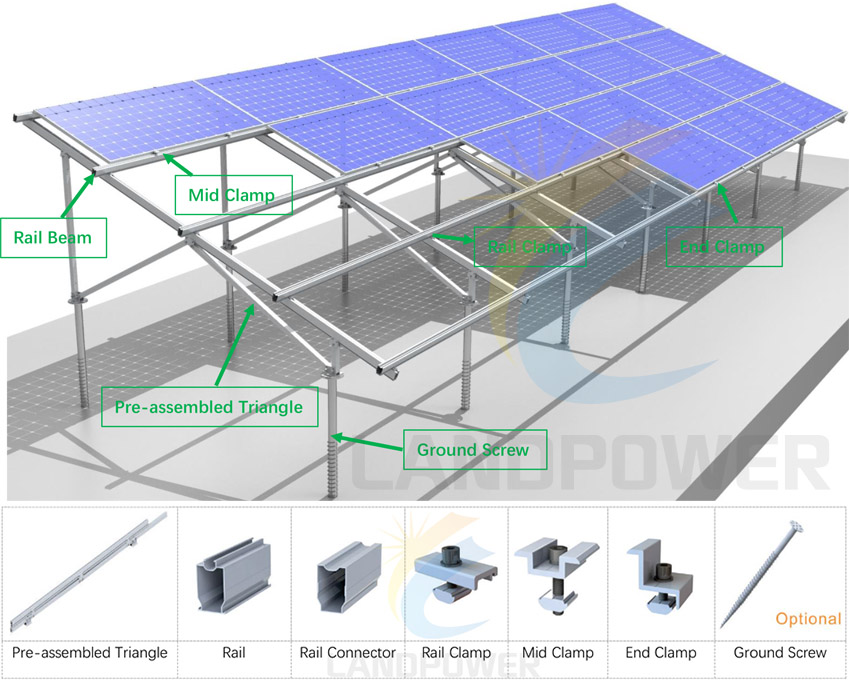

Structure Overview
The bifacial solar panel mounting systems
is quick and easy solutions, all the components are pre-assembled on factory,
less work to do on sites, just few components as below. It is quite easy to
install If come with ground screw. There are two foundation solutions for the
mounting systems, ground screw and concrete foundation.

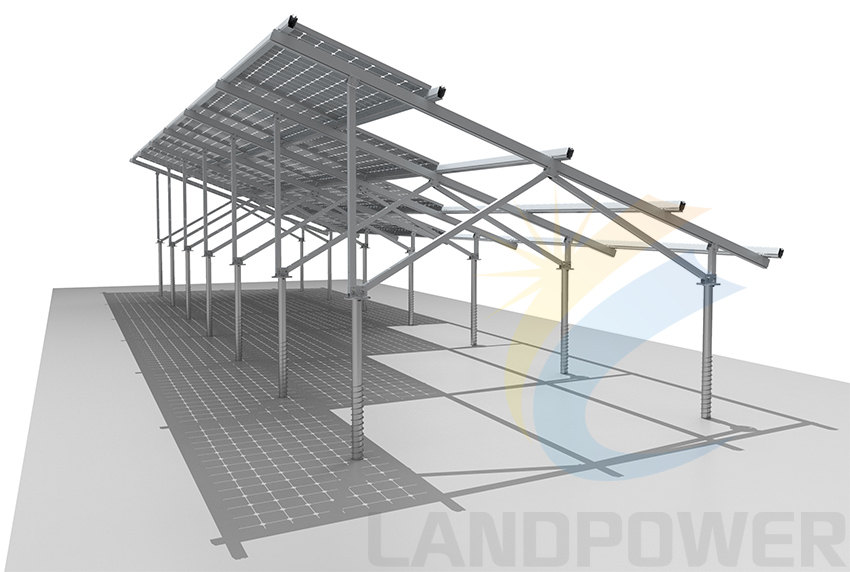

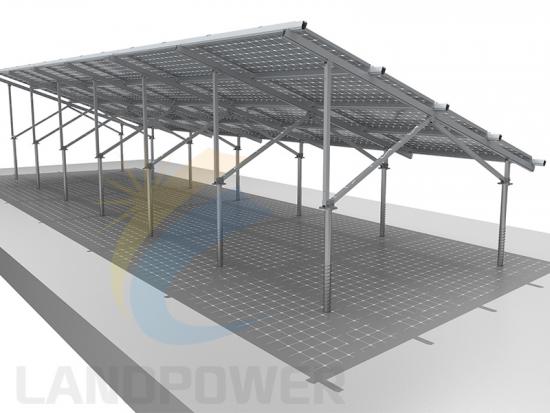

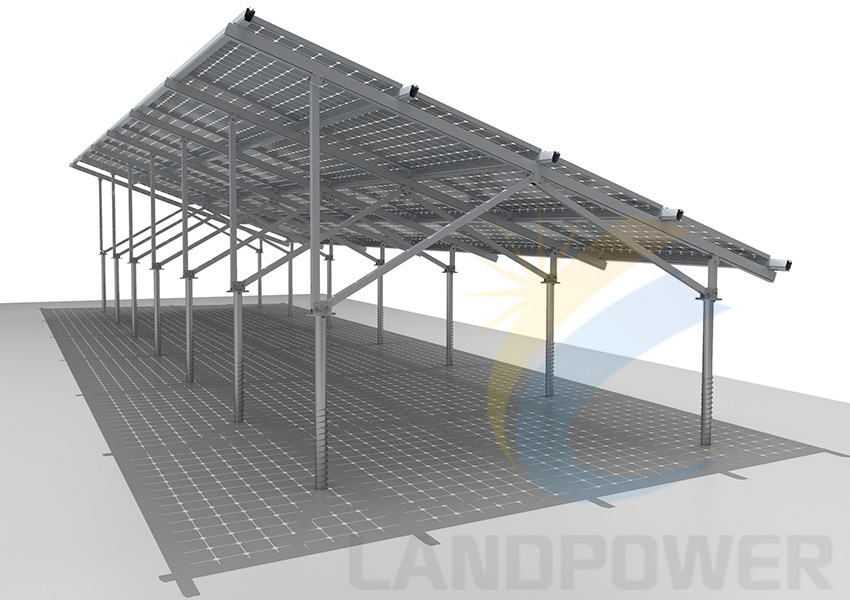

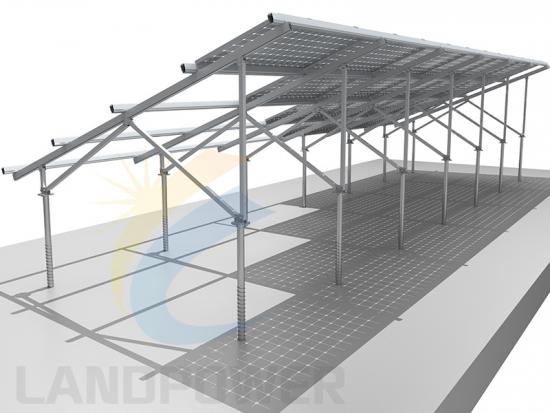

Back Side View

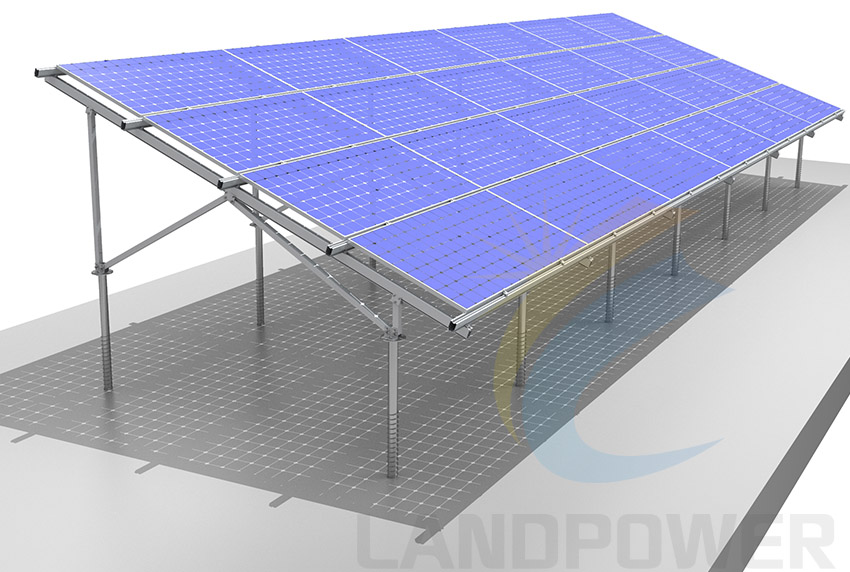

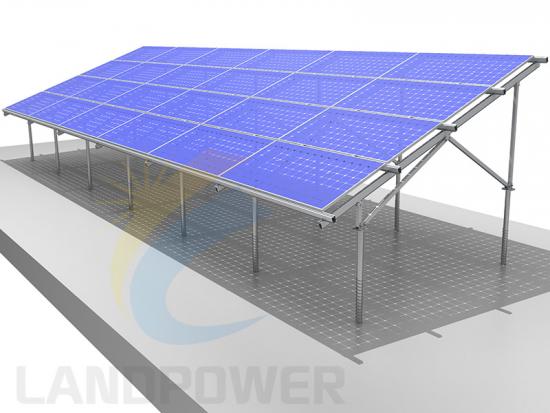

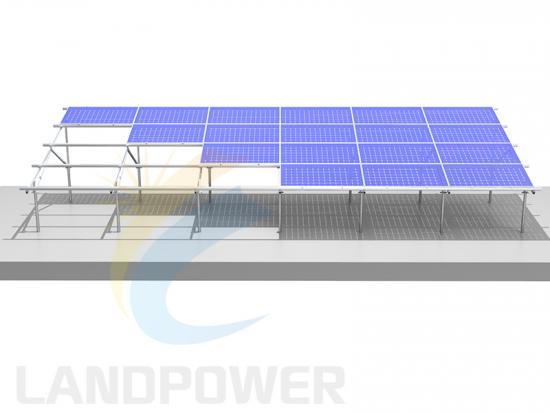

Front Side View
For the Bi-facial Solar Panel, we can design mounting systems for your specific projects, please feel free to contact us if you need special design for your projects.
