Zn-Al-Mg Coated Steel Solar Mounting Structure

How to be anti-Corrosion on the meterial is a big concern on field of solar mounting systems, the galvanized steel is widely used in solar ground mount, but not enough when in harsh environment and the falvanized film is damaged. Zn-Al-Mg Coated Steel provides outstanding corrosion resistance, 3-5 times anti-rust performance than galvanized steel, it is new and better surface settlement.

Like ZAM,SuperDyma,Magnelis,Zincalume,Magizinc,Zm EcoProtec and POSMAC, SCS (Super zinc mgenasium aluminum alloy Coating Strip) is a ternary alloy coating steel(Zn-3%Mg-11%Al) with high corrosion resistance developed with JISCO's own technology. As one of the world’s highest quality steel surface treatment products, SCS is five to ten times more resistant to rust and corrosion than existing alloyed steel plate products; Furthermore, SCS is highly resistant to alkali and ammonia, which makes it highly suitable for use in livestock handling facilities or in situations where components are in contact with concrete tar.

The Features of SCS:

1, Anti-Corrosion : as one of best Zn-Al-Mg coated steel, SCS is 5-10 times better than galvanized steel materials in Anti-corrosion performance.

2, Self-healing: SCS self-healing effect ensures the protection of uncoated edges,scratches and perforations. The facto Zn(OH)2, ZnCl2 and Mg(OH)2 form protective film and restrain cutting places corroded.

3,Long lifetime: Normally,lifetime not less than 30 year.

4,Easy Processing: Perfect property in stretching bending,welding or other processing.

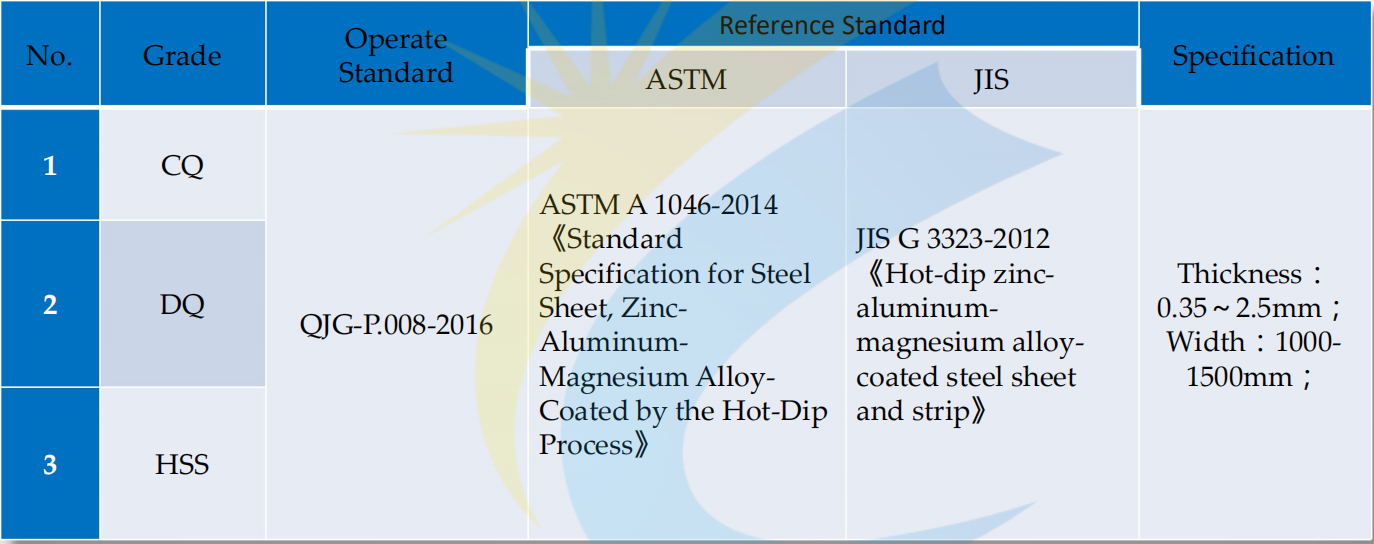

Deatail Standard and Available Specificain of Zn-Al-Mg

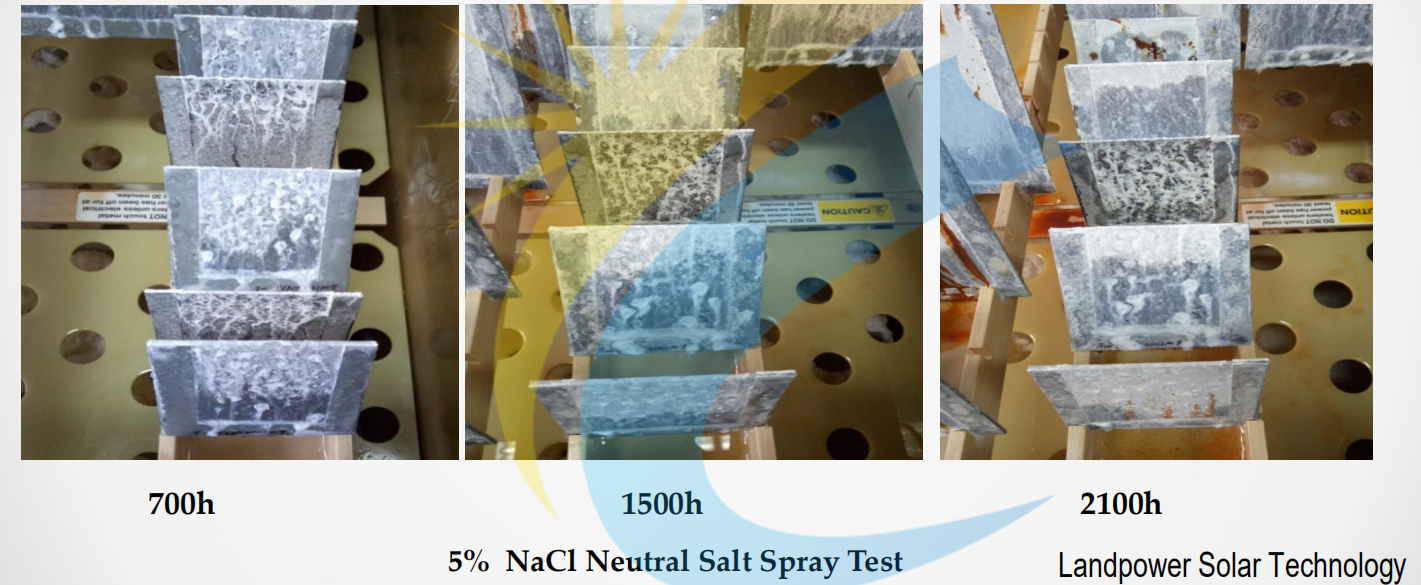

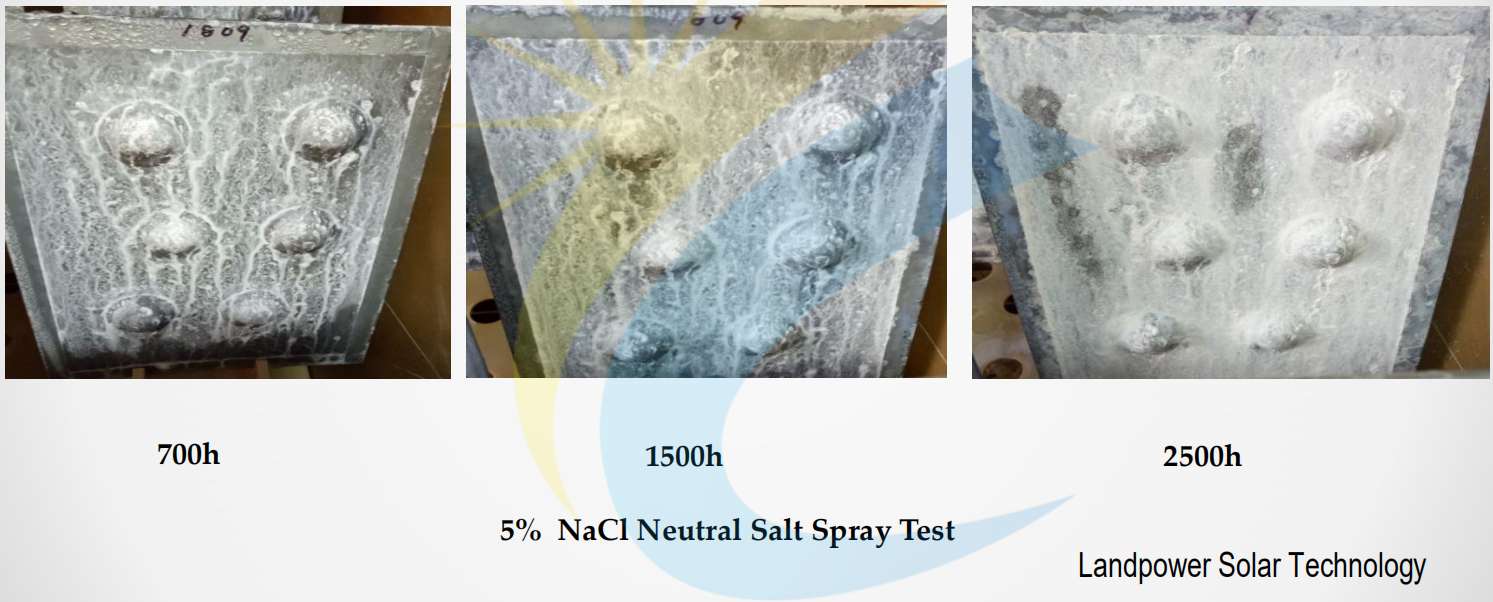

Super Anti-Corrosion Property- 5% Nacl Neutral Salt Spray Test.

From above test,we can see the Zn-Al-Mg coated steel have quite good performance on Anti-Corrosion founction.

Landpower have developed new solar roof mounting and ground mounting by using Zn-Al-Mg coated steel,it is better anti-corrosion and more strength than traditional hot galvanized steel solar mounting.For more details on Landpower PV mounting please click here: Landpower Solar Mounting Systems
